Seq: Control

All control sequencer modules here.

Default installation path S|C control sequencer modules: ...Seq/Control

Default installation path Flexor control sequencer modules: .../-=Flexor=-/Sequencers

unipolar control sequencer module.

[OnGate]: control value will only be sent on steps in which a gate event occurs. In this case, Clock must be provided by a Gate Seq module (Link).

dspLoad 0.00

bipolar version of the above.

dspLoad 0.00

unipolar control sequencer module.

[OnGate]: control value will only be sent on steps in which a gate event occurs. In this case, Clock must be provided by a Gate Seq module (Link).

[Slide] buttons: blue=exponential, yellow=logarithmic.

[Intensity] controls the steepnes of the glide.

[Curve] button switches all 16 slide buttons at one time.

dspLoad 0.00

bipolar version of the above.

dspLoad 0.00

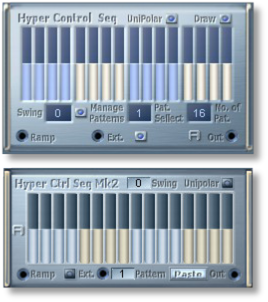

unipolar/bipolar switch, Draw pencil. Monophonic.

dspLoad 29.30/26.00/26.00

as above; new Pattern management; edit all 16 steps at one go (“draw by mouse”).

Max.Poly:4 dspLoad 22.90/19.70/19.70

provides smooth transitions between the 16steps, and also between the last and first step. Max Poly:2

dspLoad 45.60/-/-

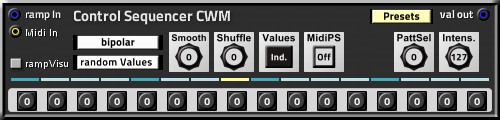

sync seq module which outputs bipolar or unipolar control values.
Random values can be created. 'Press RampVisu' button to see ramp activity.

Up to 128 pattern can be stored/recalled, also by MIDI (press 'MidiPS' button to activate this and set Midi channel).
Min value (unipolar): 0, min value (bip): -2147483644
Max value (bip and uni): 2147483628 (all sync)
CWM download
