Modelled on a classical 2005 synth patch by Planetz member Spirit, with some improvements.
Uknow osc (+ sine LFO for phase modulation), four multi oscs, white and pink noise
MultiMode LFO for pitch, pulse width and filter modulation; two sine LFOs for filter
cf + reso modulation
three ADSR envelopes for pitch, filter and volume modulation
24dB lowpass and 12/24 dB multimode filters (parallel); crossfade between Lp and
MM filter possible
Distortion, Pan modulation, Chorus, Phaser and Tempo Delay fx
OscMix VU; Distortion VU (after distortion attenuation); out VU (after Tempo Delay)
correct Tempo Delay Times by using Will's/Simon's HostStat dll. Thanks again to both

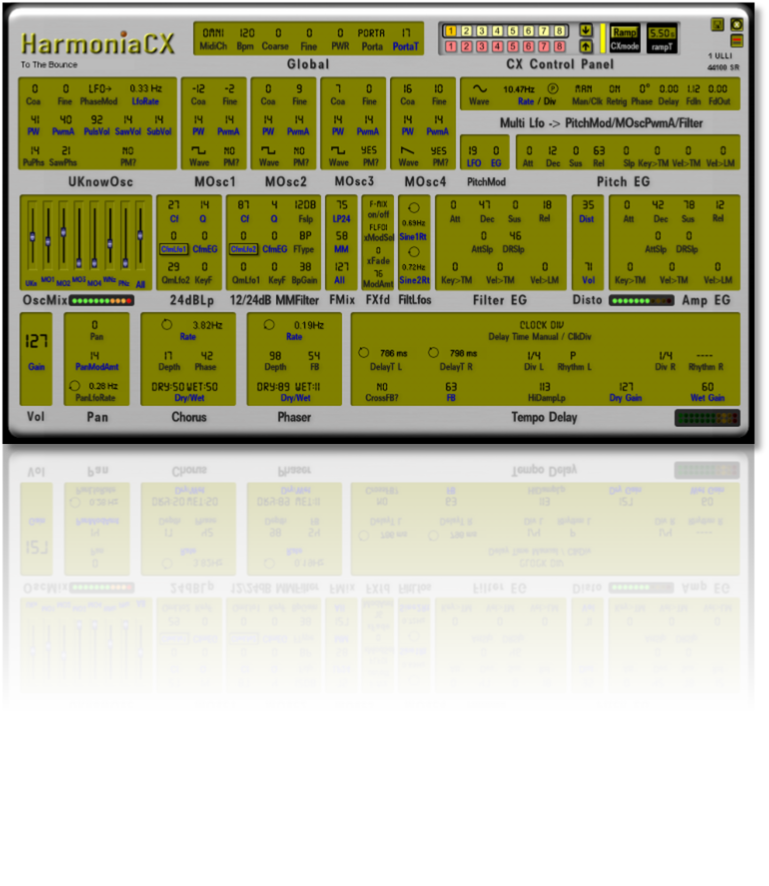

HarmoniaCX Synth device
The CX version has Parameter crossfade as an additional feature. All parameters with
blue labels can be crossfaded.
In the 'CX control panel', you see two banks, each with 8 sound slots - you can crossfade
from any upper to any lower sound, and vice versa.
there are two crossfade modes: Ramp and Manual
in Ramp mode, you can specify the time it needs for crossfading with the RampT control
in Manual mode, crossfade is performed by using the slider (Midi controller preferred)
you can copy parameters from the upper to the lower bank, and vice versa, simply
by hitting one of the arrows. Parameters of the selected (upper/lower) sound slot
will be pasted into the selected (lower/upper) sound slot.
Sound slot select can also be performed by hitting the keys C-2(NN0) to G-2(NN7)
for the upper bank, or keys G#-2(NN8) to D#-1(NN15) for the lower bank. (Switching
works only if a new slot is selected)
Download device: here ; Discussion on Planetz: here
Installation: if you don't already have it, copy HostStatVCP100.dll to .../App/Dll;
RampGen1.dsp to .../App/Dsp in your Scope installation folder.
